Falcon Acoustics F50

FALCON ACOUSTICS F50

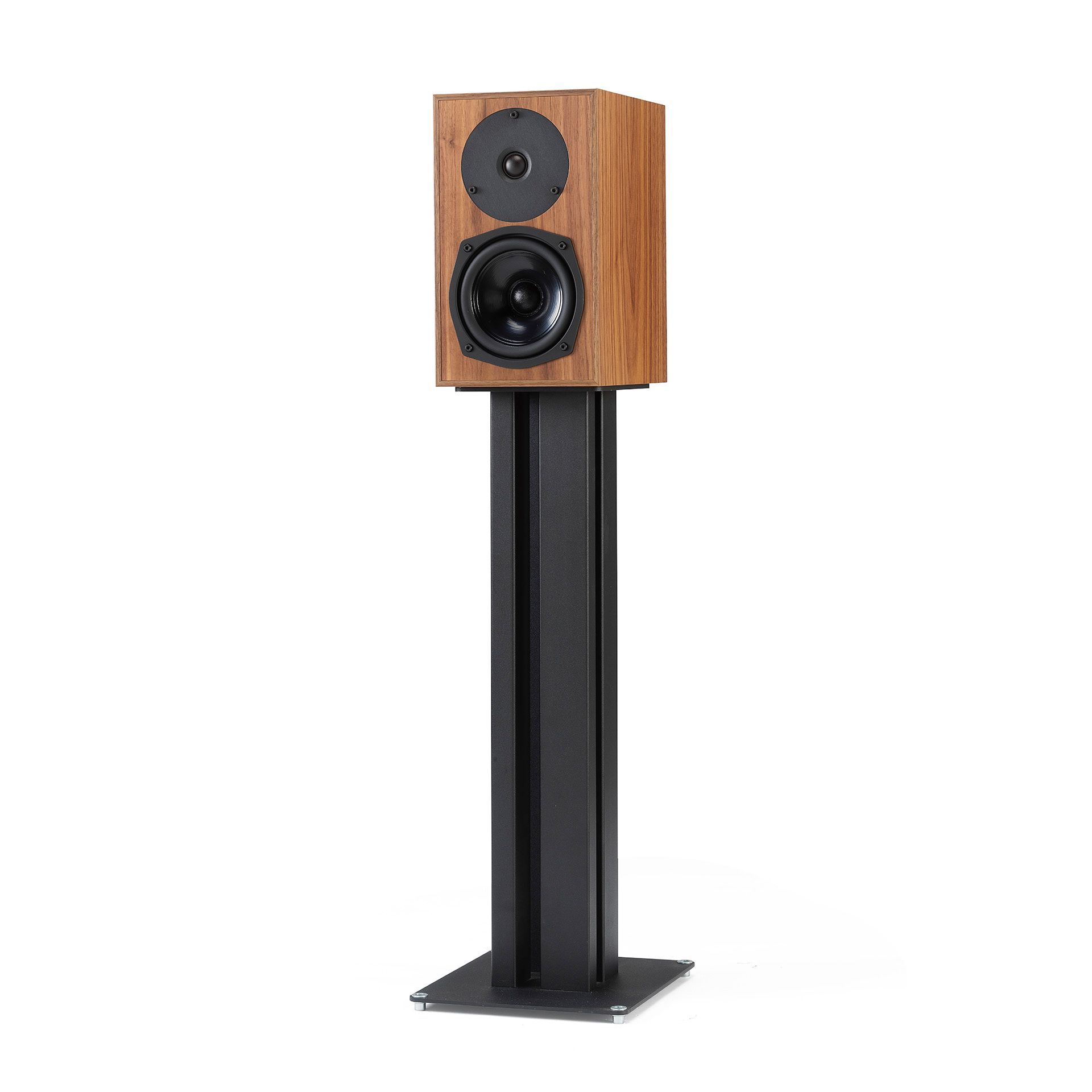

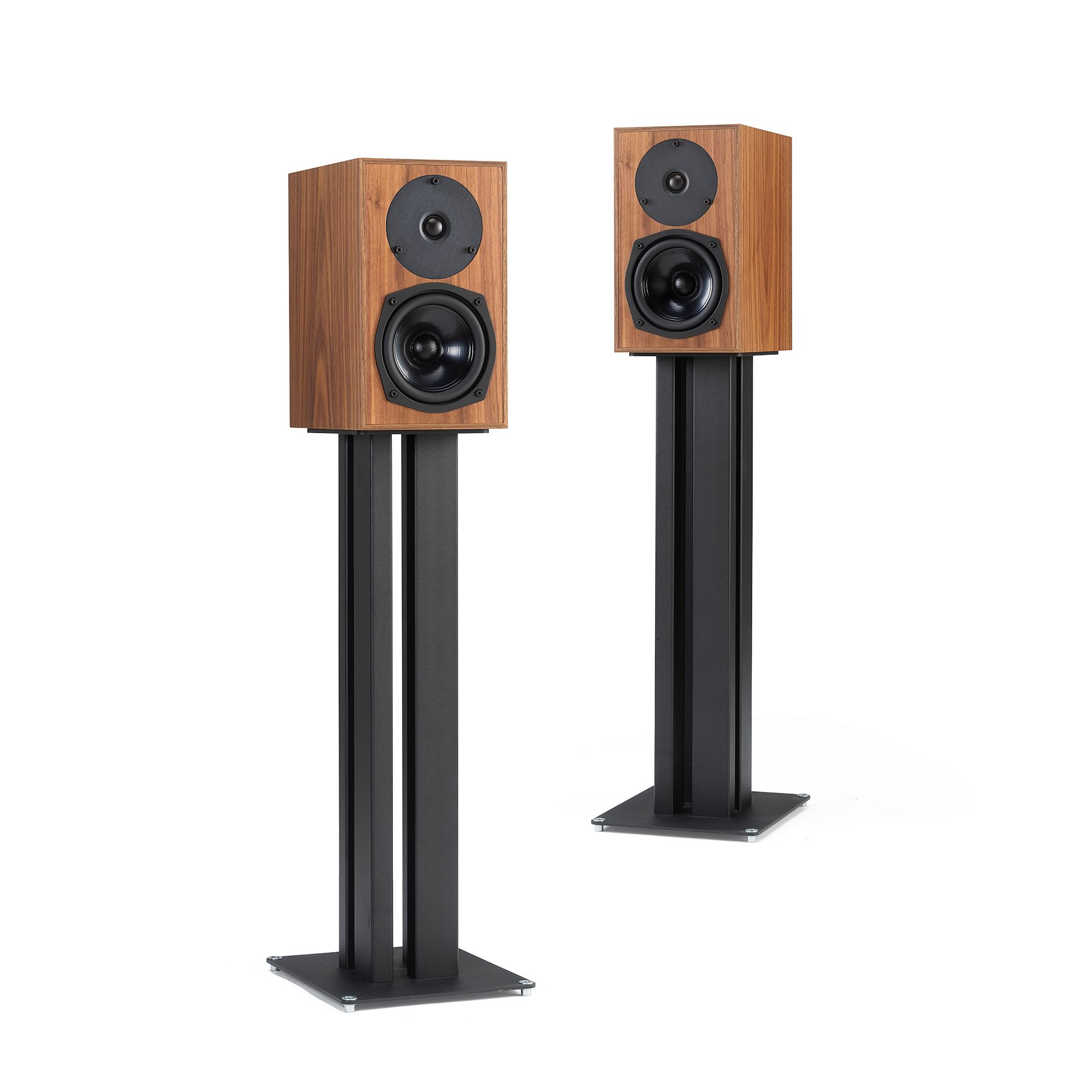

The Falcon F50 is a classic British 2-way ported stand mount speaker, deploying matched pairs of Falcon 5” B110 woofers and customised SEAS 19mm tweeters.


The carefully chosen drive units blended together with a handmade natural wood veneered Italian cabinet produces a speaker capable of superb sonic quality with surprising bass extension, typical Falcon precise imaging, smooth response and excellent sound stage.


This classic small British loudspeaker uses well-established design principles with a 5” woofer and ¾” tweeter. The format of a rear-ported 5” bass unit (in this case naturally the famous Falcon B110) and a ¾” dome tweeter is well known to produce excellent results from smaller cabinets.

Currently available in North America only.

SPECIFICATION

FALCON ACOUSTICS R.A.M STUDIO 10

Drive Units
2-way vented: 150mm (5”) Polypropylene Cone bass unit
Custom 25mm ( 1”) soft dome tweeter
Freq. response
35Hz-35kHz
Impedance
8 ohms
Sensitivity
89dB/2.83V/m
Power handling
15-100W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
315 x 210 x 280mm (+12mm for grille and binding posts)
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
10kg each, 21.5 kgs per pair shipping weight.

FALCON ACOUSTICS R.A.M STUDIO 20

Drive Units
2-way vented: 170mm (6”) Polypropylene Cone bass unit Custom 25mm ( 1”) soft dome tweeter
Freq. response
30Hz-35kHz
Impedance
8 ohms
Sensitivity
88dB/2.83V/m
Power handling
15-150W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
430 x 231 x 266mm (+12mm for grille and binding posts)
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
13kg each, 28 kgs per pair shipping weight.
FALCON ACOUSTICS R.A.M STUDIO 30

Drive Units
3-way vented: 2 no. custom made 170mm (6”) Polypropylene Cone bass units (exclusive to Falcon Acoustics); Custom 50mm (2”) Dome Midrange; Custom 25mm ( 1”) soft dome tweeter
Freq. response
20Hz-35kHz
Impedance
8 ohms
Sensitivity
89dB/2.83V/m
Power handling
15-250W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
1100 x 215 x 300mm (+12mm for grille and binding posts) incl. 60mm Plinth & Premium Falcon Audio Engineering Spikes.
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
35kg each, 74 kgs per pair shipping weight. 15 Kgs Plinth x 2

FALCON ACOUSTICS F50

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight

2-way vented: Falcon Acoustics B110 ® 5” bass-midrange unit (made by and exclusive to Falcon Acoustics).  SEAS 19mm /¾” 19mm ( 1”) soft dome tweeter.

60-25kHz

8 ohms
86dB/2.83V/m

3Khz 12db woofer/18dB tweeter

25-100W
4mm Custom-Designed nickel-plated binding posts

282 x 168 x 230mm (11” x 6 5/16th” x 9” (+12mm/½” for magnetic grille and binding  posts)

Walnut, sustainably grown real wood veneer.

6.25kg each, 15.5 kgs per pair shipping weight.
