Falcon Acoustics M Series

The all new Falcon Acoustics M Series is designed to offer outstanding Falcon quality and sound at affordable price levels.

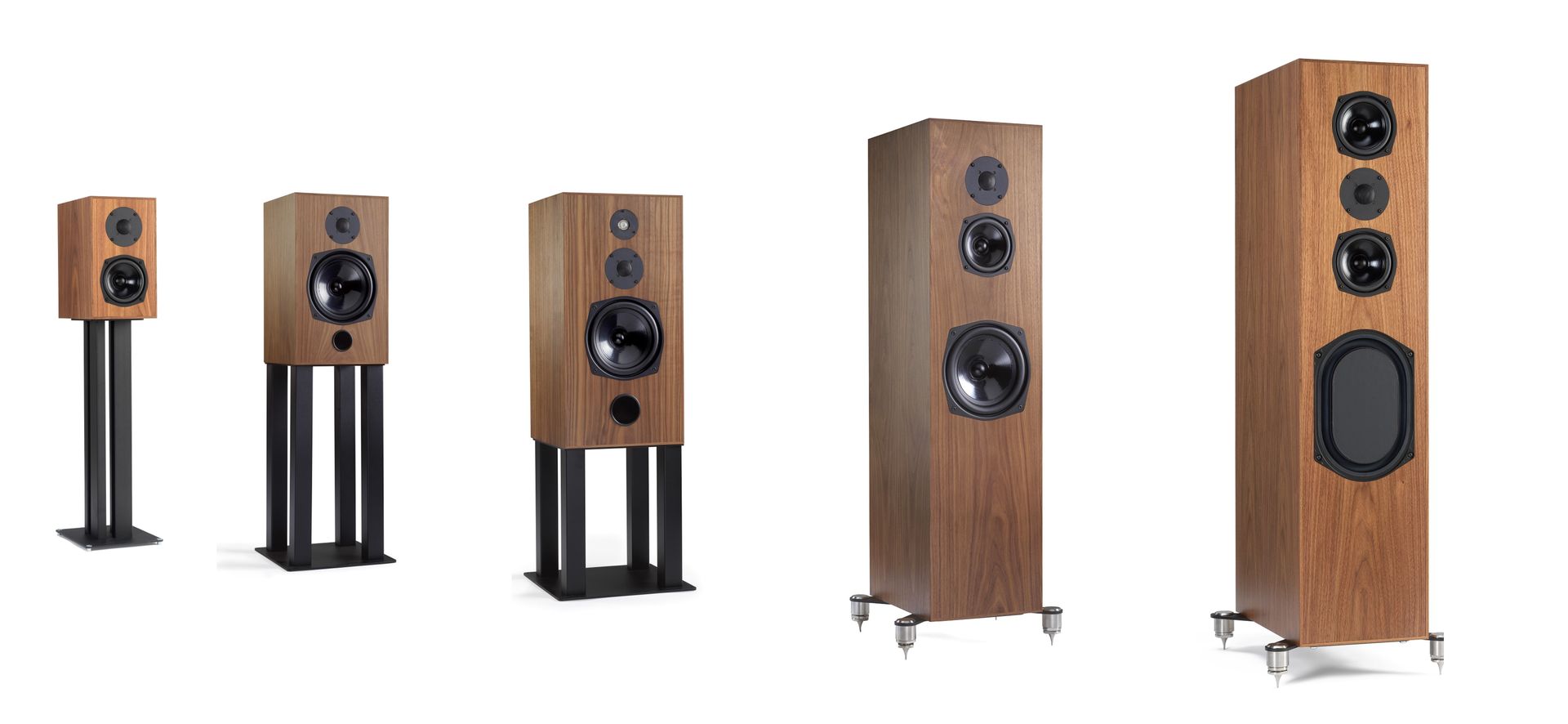

There are 5 models in the range, with a planned centre speaker.  All have no-compromise 18mm M10 only) or 18/25mm MDF cabinets hand built by specialist cabinet makers in Italy. Falcon’s commitment to quality is further shown by the use of heavy-duty custom Falcon designed rear terminals are mounted on 2mm stainless steel plates throughout, and for the floor-standing M40 and M50, a heavy plinth is provided complete with CNC engineered stainless steel spikes.

All drive units (apart from tweeters) are designed by Malcom Jones and hand built by Falcon to ensure the highest consistency and quality.  The M Series tweeter is a custom-made design made for Falcon by SEAS of Norway.

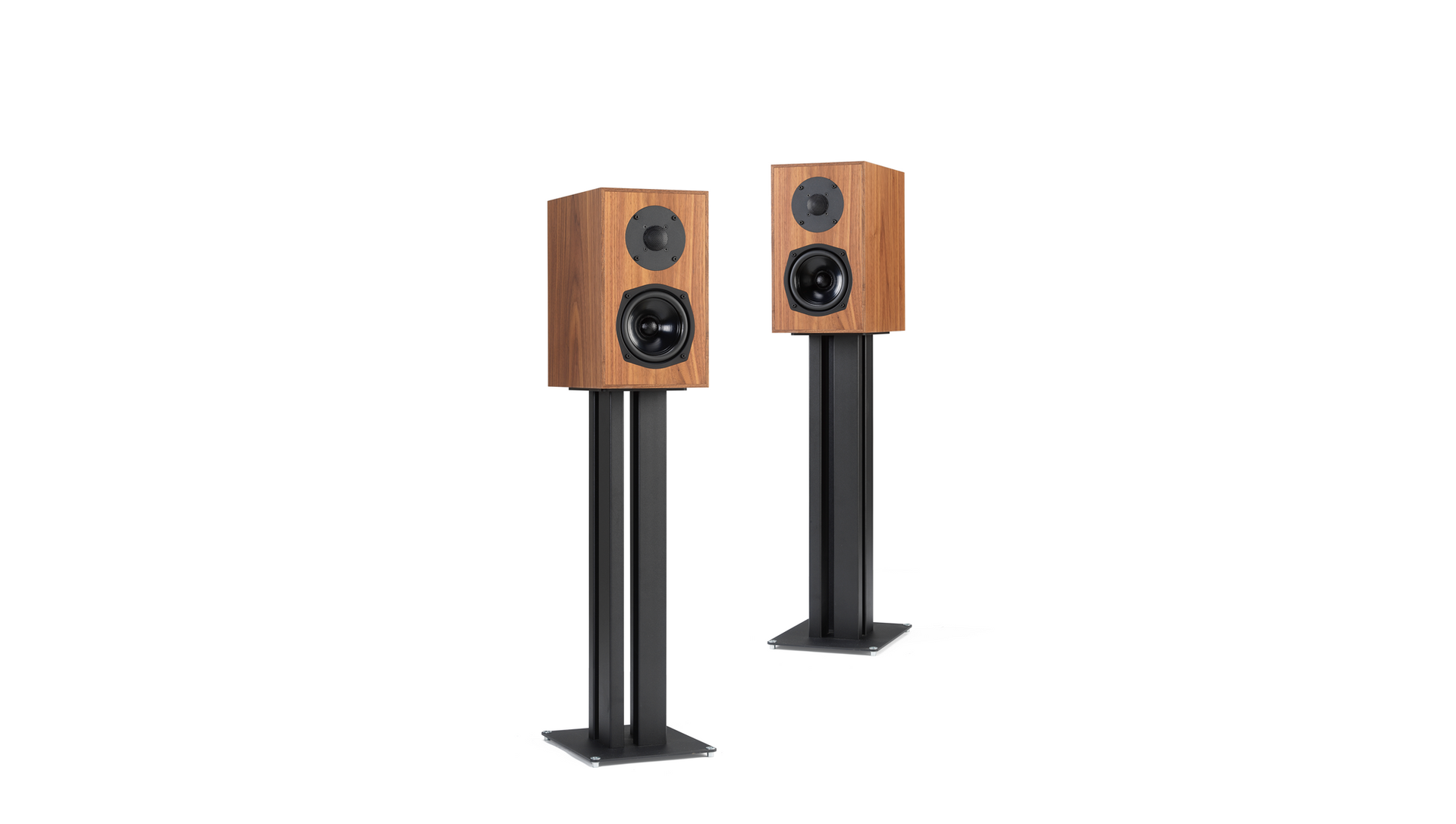

The M10 is the smallest in the range, a 2-way ported stand mount speaker, with matched pairs of 5” B110 woofers especially selected for a smooth response, which together with the custom Falcon M Series tweeter produces a speaker capable of outstanding quality, absolute precise imaging, excellent bass extension and extended sound stage.

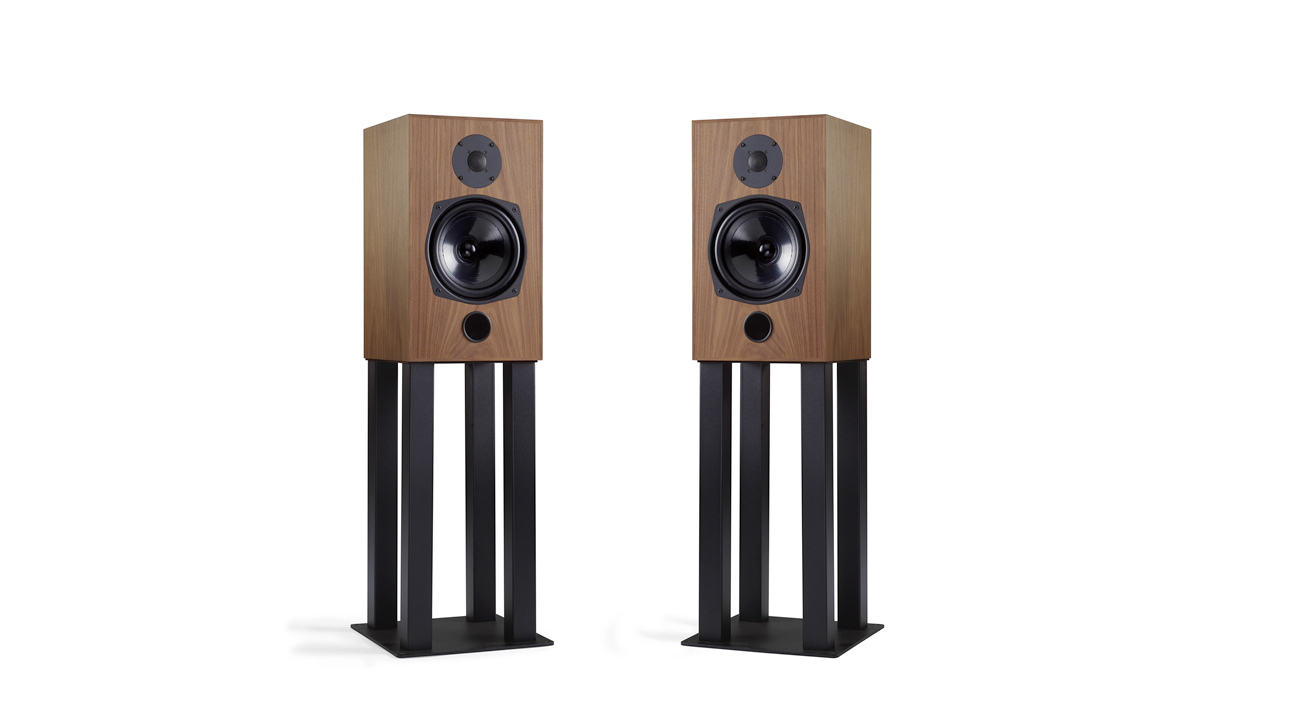

The M20 is a mid-sized stand mount 2 way ported speaker, with a new Falcon B200 8” cone woofer especially selected for extended bass and accuracy of response, using the custom Falcon M Series tweeter. This combination gives good bass extension, the typical midrange accuracy for which Falcon is so well known, exceptional imaging and wide sound stage.

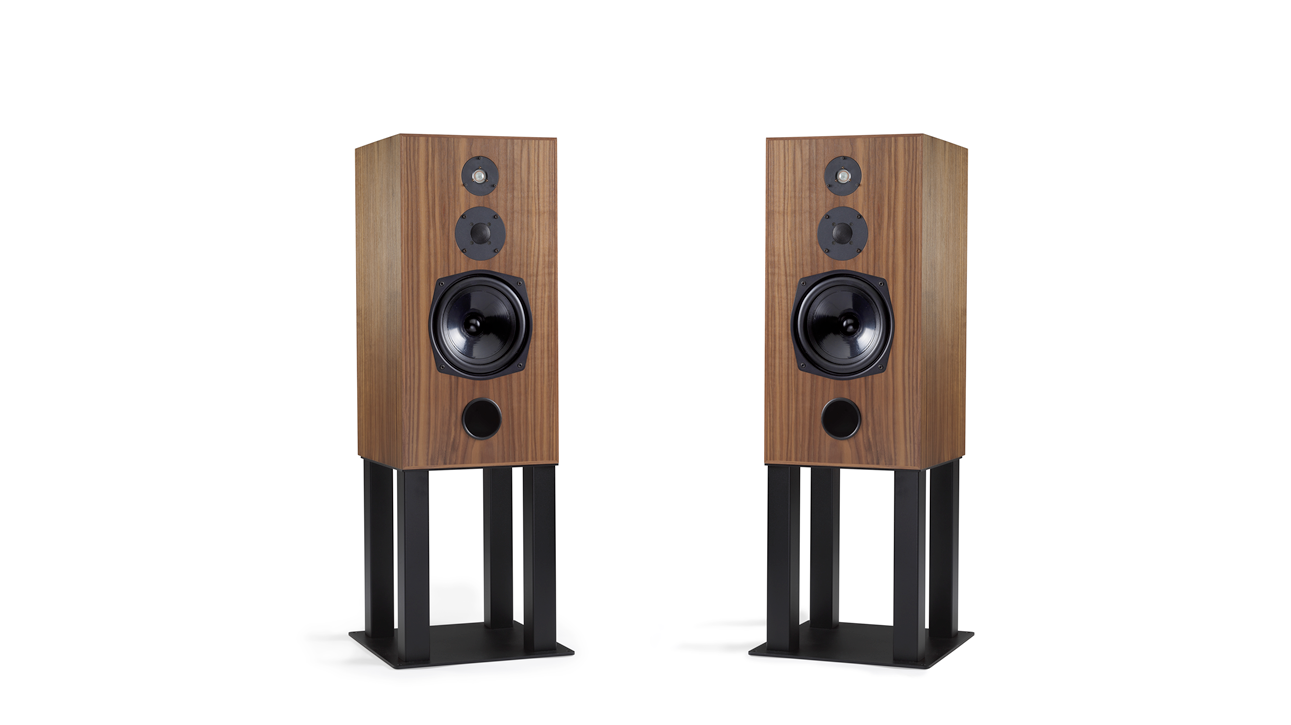

The M30 is a larger stand mount 2 way ported speaker featuring an additional 19mm Super Tweeter, with the new Falcon B200 8” cone woofer optimised to the larger cabinet enabling even more bass extension, highly detailed midrange and the custom Falcon M Series tweeter working together with the Super Tweeter giving a highly detailed and open top end.

The M40 is a mid-sized stand mount 2 way ported speaker, with a new Falcon B200 8” cone woofer especially selected for extended bass and accuracy of response, using the custom Falcon M Series tweeter. This combination gives good bass extension, the typical midrange accuracy for which Falcon is so well known, exceptional imaging and wide sound stage.

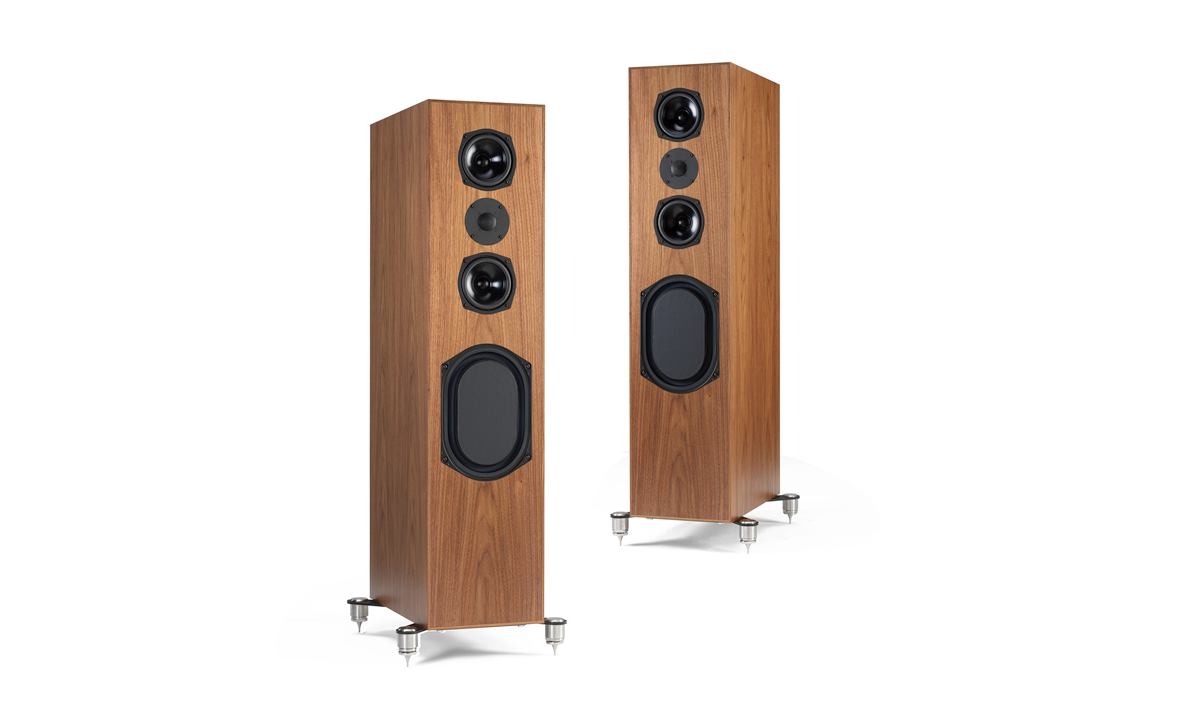

The M50 is the largest in the M Series, a 3 way ported floor-stander, offering exceptional sound quality and specification. The legenday Falcon B139 woofer provides stunning bass, twin dedicated Falcon B110 midranges give exquisite midrange accuracy and definition. High frequencies are again provided by the custom Falcon M Series tweeter. A Custom metal plinth with Heavy Duty CNC Falcon Stainless Steel spikes finishes an exceptional flagship loudspeaker.

SPECIFICATIONS

FALCON ACOUSTICS R.A.M STUDIO 10

Drive Units
2-way vented: 150mm (5”) Polypropylene Cone bass unit
Custom 25mm ( 1”) soft dome tweeter
Freq. response
35Hz-35kHz
Impedance
8 ohms
Sensitivity
89dB/2.83V/m
Power handling
15-100W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
315 x 210 x 280mm (+12mm for grille and binding posts)
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
10kg each, 21.5 kgs per pair shipping weight.

FALCON ACOUSTICS R.A.M STUDIO 20

Drive Units
2-way vented: 170mm (6”) Polypropylene Cone bass unit Custom 25mm ( 1”) soft dome tweeter
Freq. response
30Hz-35kHz
Impedance
8 ohms
Sensitivity
88dB/2.83V/m
Power handling
15-150W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
430 x 231 x 266mm (+12mm for grille and binding posts)
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
13kg each, 28 kgs per pair shipping weight.
FALCON ACOUSTICS R.A.M STUDIO 30

Drive Units
3-way vented: 2 no. custom made 170mm (6”) Polypropylene Cone bass units (exclusive to Falcon Acoustics); Custom 50mm (2”) Dome Midrange; Custom 25mm ( 1”) soft dome tweeter
Freq. response
20Hz-35kHz
Impedance
8 ohms
Sensitivity
89dB/2.83V/m
Power handling
15-250W
Connector
4mm Custom-Designed nickel-plated binding posts
Dimensions (HxWxD)
1100 x 215 x 300mm (+12mm for grille and binding posts) incl. 60mm Plinth & Premium Falcon Audio Engineering Spikes.
Finish
Wrapped natural Black Leather Exchangeable side panels in real wood veneer. Walnut, High Gloss White, High Gloss Black, Burr Walnut.
Weight
35kg each, 74 kgs per pair shipping weight. 15 Kgs Plinth x 2

FALCON ACOUSTICS M10

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight
2-way vented: Falcon Acoustics  B110 ® bass-midrange unit (made by and exclusive to Falcon Acoustics) Custom 25mm
( 1”) soft dome tweeter with protection grille
40-30kHz +/- 3 dB.  70-20kHz +/- 2 dB
8 ohms
86dB/2.83V/m

3Khz

25-100W
4mm Custom-Designed nickel-plated binding posts

316 x 185 x 260mm (+12mm for grille and binding posts)

Walnut,  Satin Rosewood ( extra cost option) sustainably grown real wood veneers
7.5kg each, 17 kgs per pair shipping weight

FALCON ACOUSTICS M20

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight
2-way vented: Falcon Acoustics  B200 ® 8”bass-midrange unit (made by and exclusive to Falcon Acoustics).  Custom 25mm ( 1”) soft dome tweeter with protection grille
38-30kHz +/- 3 dB.  50-20kHz +/- 2 dB
8 ohms
90dB/2.83V/m

3Khz

25-150W
4mm Custom-Designed nickel-plated binding posts
470 x 280 x 275mm (+12mm for grille and binding posts)
Walnut, Satin Rosewood ( extra cost option) sustainably grown real wood veneers
14.0kg each, 32 kgs per pair shipping weight

FALCON ACOUSTICS M30

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight
3-way vented: Falcon Acoustics  B200 ® 8”bass-midrange unit (made by and exclusive to Falcon Acoustics).  Custom 25mm ( 1”) soft dome tweeter with protection grille. 19mm Mylar dome Super Tweeter
28-30kH z +/- 3 dB.  40-25kHz +/- 2 dB
8 ohms
90dB/2.83V/m

3 Khz, 13 Khz

25-175W
4mm Custom-Designed nickel-plated binding posts
635 x 320 x 320mm (+12mm for grille and binding posts)
Walnut, Satin Rosewood ( extra cost option) sustainably grown real wood veneers
23.25 kg each, 50 kgs per pair shipping weight

 FALCON ACOUSTICS M40

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight
3-way vented:  Falcon Acoustics B200 ® 210mm bass unit (made by and exclusive to Falcon Acoustics).
Falcon Acoustics B110 ® midrange unit (made by and exclusive to Falcon Acoustics).
Custom 25mm ( 1”) soft dome tweeter with protection grille
26Hz-30kHz +/- 3 dB.
8 ohms
87dB/2.83V/m

700 Hz, 3Khz

50-125W
4mm Custom-Designed nickel-plated binding posts
1110 x 270 x 360mm (+12mm for grille and binding posts) incl. 60mm Plinth & Premium Falcon Audio Engineering Stainless Steel Spikes
Walnut,  Satin Rosewood ( extra cost option) sustainably grown real wood veneers
42kg each,  90kgs per pair shipping weight. 15 Kgs Plinth x 2

 FALCON ACOUSTICS M50

Drive Units
Freq. response
Impedance
Sensitivity

Crossover Hz

Power handling
Connector
Dimensions (HxWxD)
Finish
Weight
3-way vented: Falcon Acoustics B139 ® 310mm x 210mm  bass unit (made by and exclusive to Falcon Acoustics).
Falcon Acoustics twin B110 ® midrange units (made by and exclusive to Falcon Acoustics).
Custom 25mm ( 1”) soft dome tweeter with protection grille
20Hz-30kHz +/- 3 dB.  16Hz –5dB
8 ohms
87dB/2.83V/m

350 Hz, 3Khz

50-250W
4mm Custom-Designed nickel-plated binding posts
1203 x 270 x 460mm (+12mm for grille and binding posts) incl. 60mm Plinth & Premium Falcon Audio Engineering Stainless Steel Spikes
Walnut,  Satin Rosewood ( extra cost option) sustainably grown real wood veneers
47kg each, 100 kgs per pair shipping weight. 15 Kgs Plinth x 2
